Model No: DLX

Multistage centrifugal pump DLX

The DLX series centrifugal pump is multi-stage impeller centrifugal pump with a high clean, high efficiency, high lift and economical delivery pump. The highest lift is up to 180 meter（18bar） and the conveying medium is soft and hygienic. Mainly used in bio-pharmaceutical, food and beverage, wine, water treatment, fine chemicals and other industrial fields.

Quantity :

add to cart

Contact Now

Solution for high efficiency, low noise, high head, simple and economical maintenance, high purity

Description

The DLX Series centrifugal pump is a horizontal multi-stage open impeller centrifugal pump with high purity, high efficiency, max head can be up to 180M(18Bar). It is soft and hygienic to transport medium. Mainly used in food and beverage, dairy, brewery carbonation process, CIP feed, pharmaceutical industry, pure water pump(WFI Injection water), biotechnology production, infusion(nutrient solution, ethanol)filling station, personal care, soap, skin cream, lotion industry, purification treatment(CIP system),water technology, semiconductor production, metal surface treatment, etc..

Options
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM (Single seal/ Double seal)
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ

5. Motor brand: Siemens, ABB, Chinese Brand

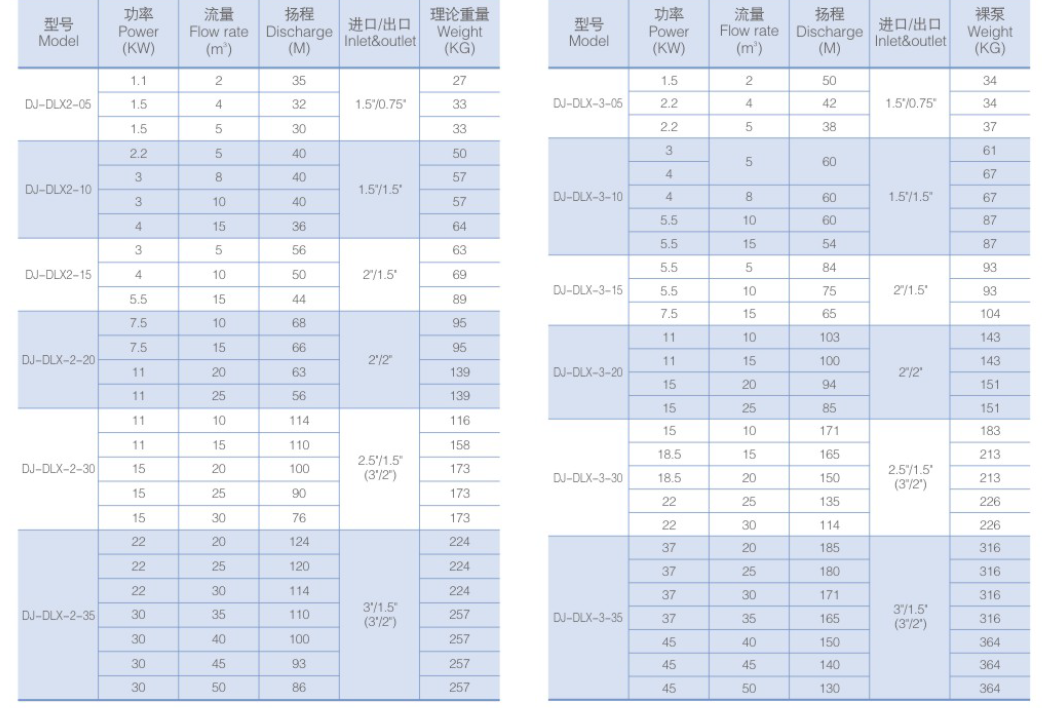

Specifications

Product Name:	Sanitary Multi-stage Centrifugal pump with high pressure for beverage
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow:	150 m³/h
Max. Speed:	3600 min-1
Max. Head:	180H(m)
Max. Working Pressure:	18bar
Max. WorkingTemperature:	120 °C
Motor:	ABB / domestic / SIEMENS
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	DLX
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Electic
Low discharge option :	Low discharge / diaphragm valve / ball valve / butterfly valve
Application scope:	Dairy,food, beverage, pharmacy, cosmetic, etc
Rotors:	Opening
Level:	Sanitary grade

Applications

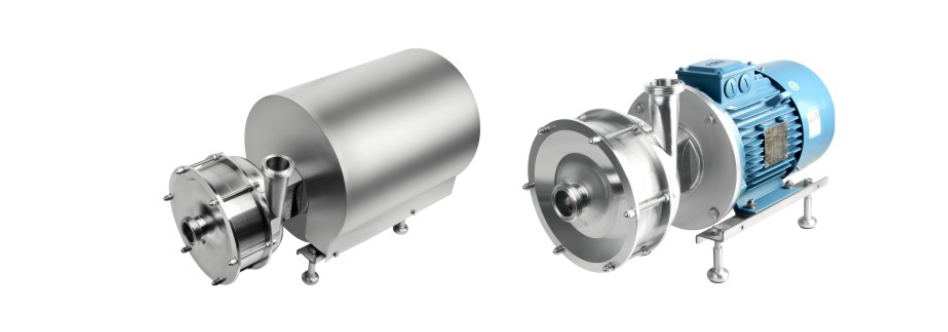

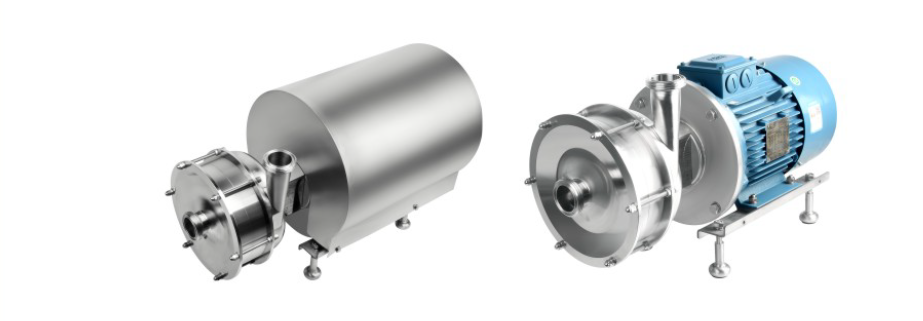

1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.

Technical Advantages

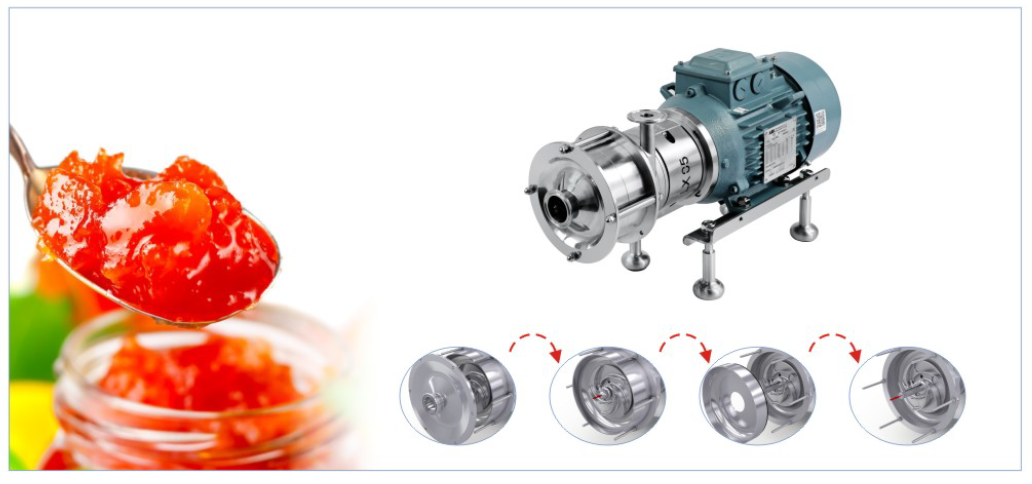

Maintenance disassembly and installation can be completed without professional staff and special tools.

Initial use of installation debugging, even if a short revere rotation will not be damage.

Impeller and shaft are connected by keyway, Impeller and mechanical seal rotating ring are connected by pin.Mechanical seal static ring and pump body are connected by special-shaped flange

Compatible with single and double machine seal, only need to change machines seal.
